MATRIX-1
Next-generation AI humanoid robot for real-world applications
Contact Us
Get news, photos, events, and business updates
MATRIX-1

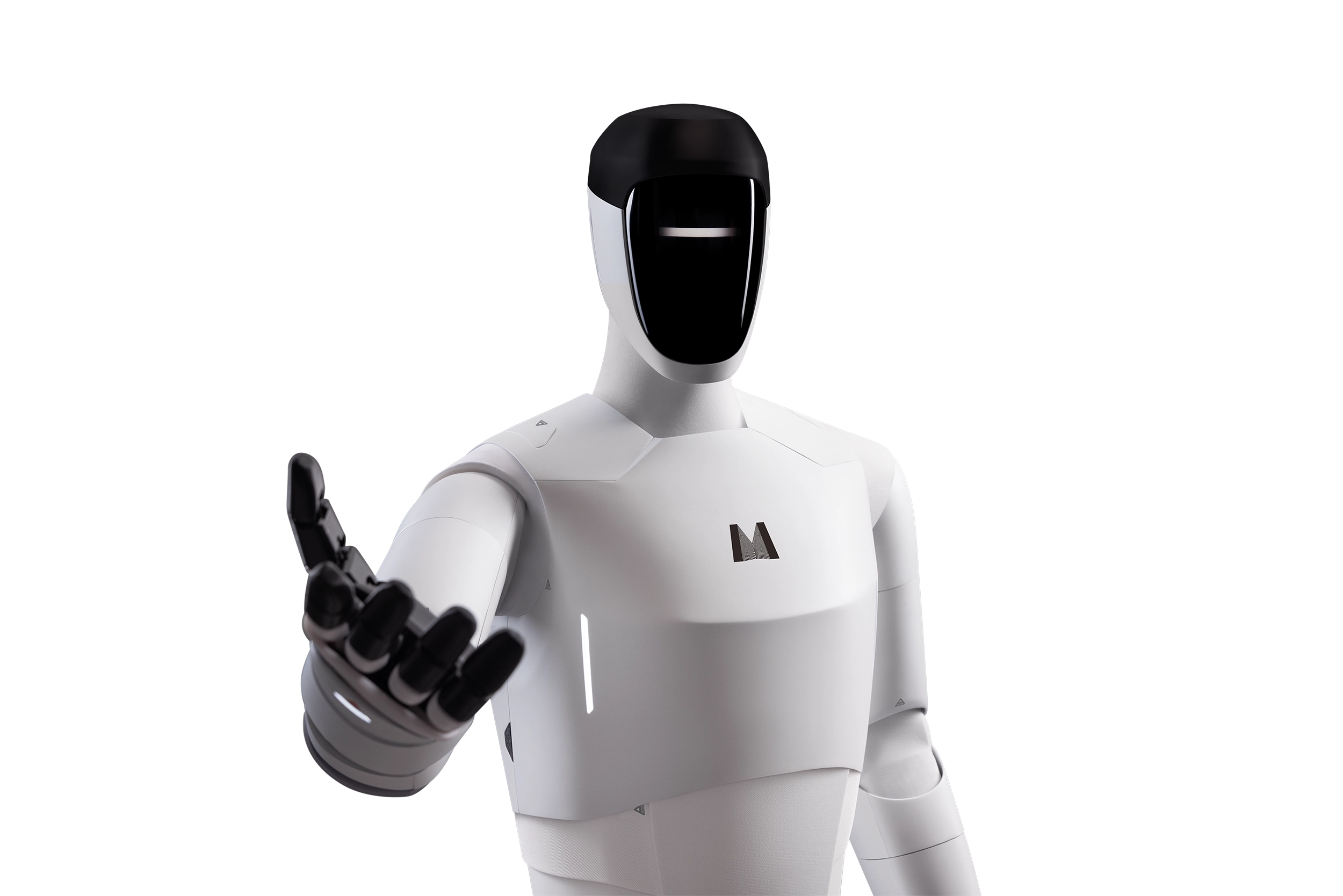

MATRIX-1 is a humanoid robot designed for safe and efficient real-world tasks and responsibilities. It is equipped with advanced sensors and AI, seamlessly integrating into complex systems to enhance your projects through automation and data collection.
Endurance Charging
MATRIX-1 Power motors and accelerators provide durability for demanding tasks while maintaining safety when working with the training team. Fast charging 45 minutes to run up to 5 hours.
Flexibility Beyond Human Limits
MATRIX-1 features an exceptionally wide range of joint motion powered by fully self-developed motors and actuators, delivering superior flexibility.
AI-Driven
Advanced robotics enhanced by imitation and reinforcement learning are evolving every day, pushing the boundaries of what's possible.
Reasoning AI Module
Compared to the previous generation, MATRIX-1's onboard computing and AI reasoning capabilities have increased by 4 times. This enables real-world AI tasks to be executed autonomously.
3rd Generation Dexterous Hand
MATRIX-1's dexterous hand is equipped with force-position hybrid control, replicating human-like sensitivity to enable precise and reliable object manipulation. The fully industrial-grade dexterous hand offers 22 degrees of freedom, comparable to human hands.

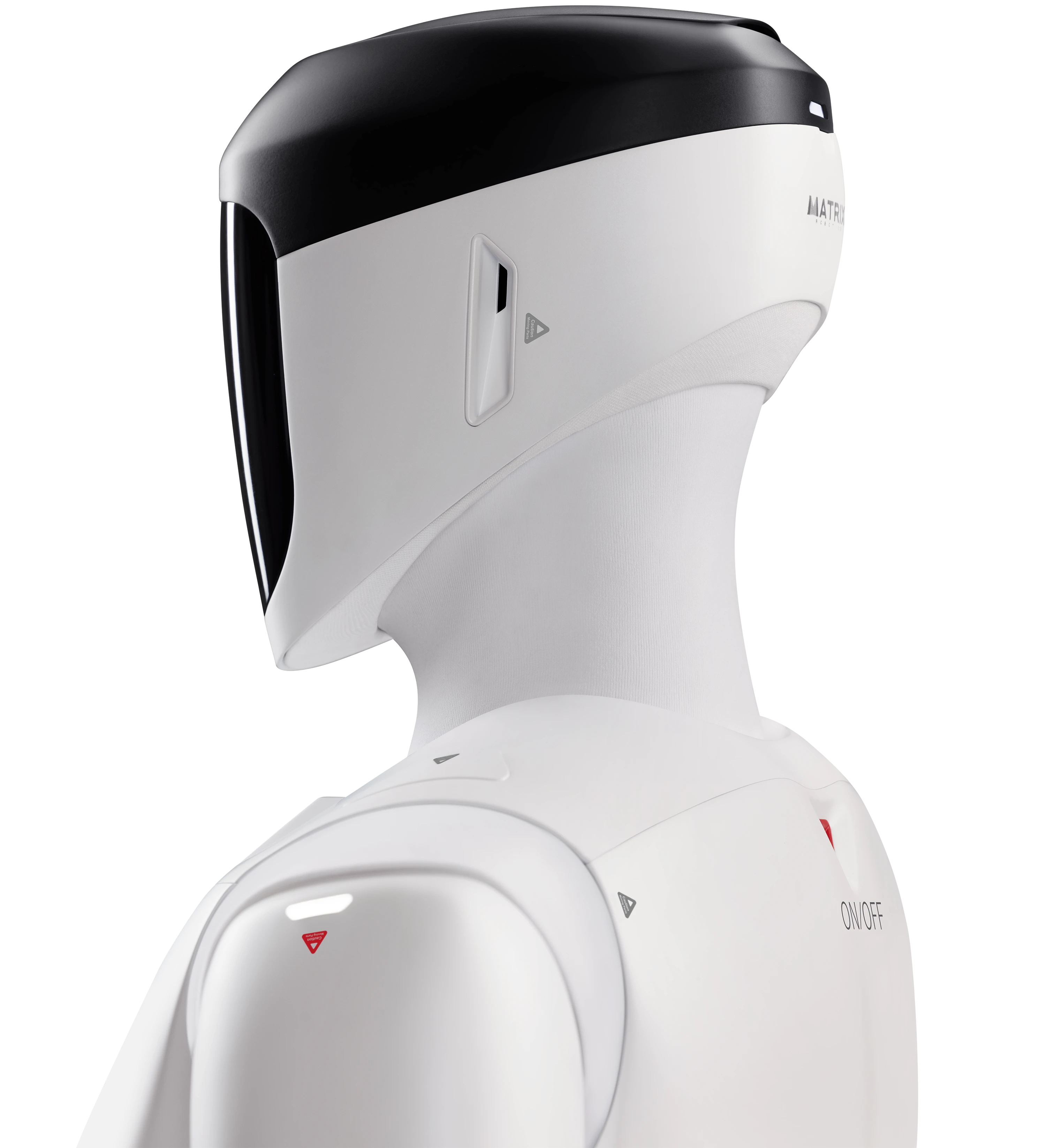

New Motion Enclosure Mechanism
MATRIX-1's innovative enclosure material design is manufactured in the neck and torso. This not only enhances the robot's flexibility but also improves its overall interaction safety. It enables MATRIX-1 to perform more complex body posture adjustments to better mimic human movements.

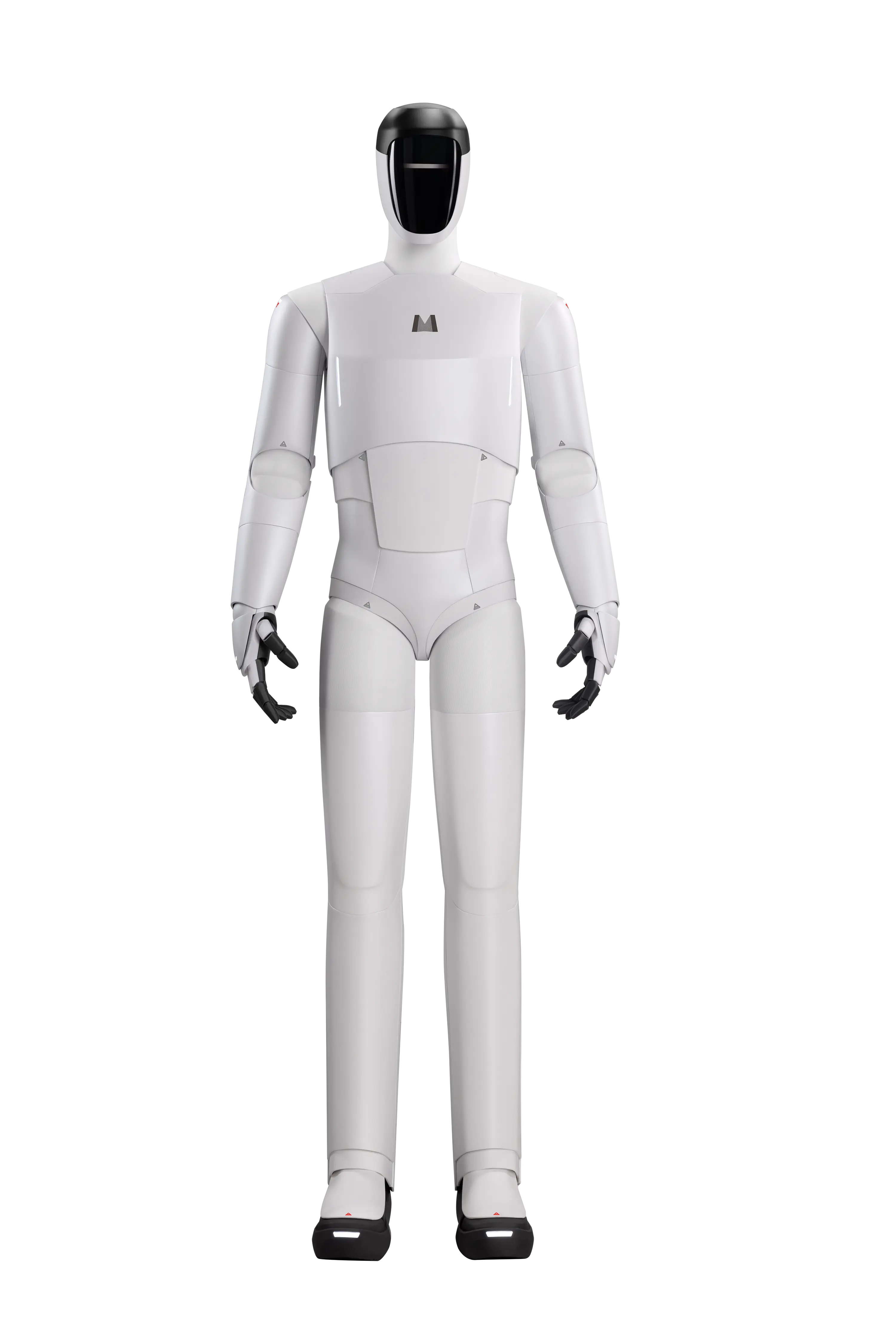

MATRIX-1
Full-Size Humanoid Robot
Height
180CM
Weight
67KG
Single Arm Load
10KG
Endurance
5Hours
Speed
1.2m/s
Electrical System
Electric
Safety First
Each MATRIX-1 undergoes rigorous real-world testing before deployment. Its inspiration mechanism ensures inherent safety, making it ready for your environment.”
Humanoid Intelligence
MATRIX integrates robotics and artificial intelligence, pioneering embodied learning. MATRIX-1 is capable of understanding natural language and physical environments, enabling it to perform practical tasks inside and outside your workplace.”
Mass Production
MATRIX-1 is designed for advanced manufacturing, enabling the mass production of humanoid robots. This scalability provides a sufficient labor supply to address social challenges.”
Height
180 cm
Weight
67 kg
Payload
10 kg per arm
Peak Torque Density
196N.m/Kg
Actuator
55, MPA 3.0
Battery Life
2.28 KWh custom battery pack; autonomous charging base
Operating Time
5 hours
Speed
7.6 km/h
Speaker
Supported
Microphone Array
Active Noise Cancellation, Echo Cancellation
Electrical System
Electric
Camera/Depth Sensing
AI-driven vision system powered by 8 onboard RGB cameras, with LIDAR and ultrasonic sensors for obstacle detection (optional)
Chip/Computing Module/Intelligence
Onboard AI inference computing capability with 8 cores and integrated GPU running a real-time operating system, for AI algorithms used in perception, planning, and control, enabling fully autonomous real-world AI tasks
Voice Dialogue
Capable of voice recognition and synthesis dialogue with humans through onboard microphones and speakers; facial expression display; custom language AI model jointly trained with leading LLM vendors
Artificial Intelligence (AI)
Onboard Vision-Language Model (VLM) capable of rapid commonsense visual reasoning from robot cameras
Harness
Integrated cables for power and computing communication, enabling hidden wiring, higher reliability, and tighter packaging
Dexterous Manipulation
3th generation, five-fingered dexterous hand, equipped with tactile sensors, 22 degrees of freedom, and human-equivalent strength
Embodied Manipulation Model
100% fully autonomous, neural network learning spatial positions, self-correcting learning behavior<br />MLM2.0 model
Application
General-purpose Humanoid Robot
What is MATRIX-1?：MATRIX-1 is a full-size, versatile, and agile humanoid robot developed by Matrix Hyperintelligence, designed to perform various physical world tasks. It is equipped with cameras and sensors that allow it to effectively perceive and interact with its surroundings. The mobility, flexibility, and balance of MATRIX-1 enable it to navigate complex environments and manipulate objects with precision. How does MATRIX-1 use artificial intelligence (AI)?：MATRIX-1 operates autonomously by default, using AI to efficiently explore the workspace. It can open various types of door handles, recognize people and objects from a distance, and move through unstructured spaces like a human. MATRIX-1 leverages its strength, precision, and sensors to assist human operators in tasks such as patrolling office buildings and verifying employee IDs. It monitors potential hazards or errors and reports when shared autonomy is needed. This allows operators to control the motion functions of MATRIX-1 when manual intervention or decision-making is required. How is MATRIX-1 trained?：MATRIX-1 is trained in the confidential labs and manufacturing workshops of Matrix Hyperintelligence, utilizing the fusion of robotics and artificial intelligence to understand natural language and physical space.
